CH-SAL S sensor

Features：CH-SAL adopts high quality aluminum alloy material, with high precision, high stability, low appearance, easy installation, fast and so on.It is suitable for testing machine, batching scale, mixing station, belt scale and packing scale, etc., and can...

OnlineTel
156-2185-0939

Product intro

Product

Product Name：CH-SAL S sensor

Features：CH-SAL adopts high quality aluminum alloy material, with high precision, high stability, low appearance, easy installation, fast and so on.It is suitable for testing machine, batching scale, mixing station, belt scale and packing scale, etc., and can be used for pulling force or pressing.

Range：50N（5kg）、100N(10kg)、200N(20kg)、500N(50kg)、1000N(100kg

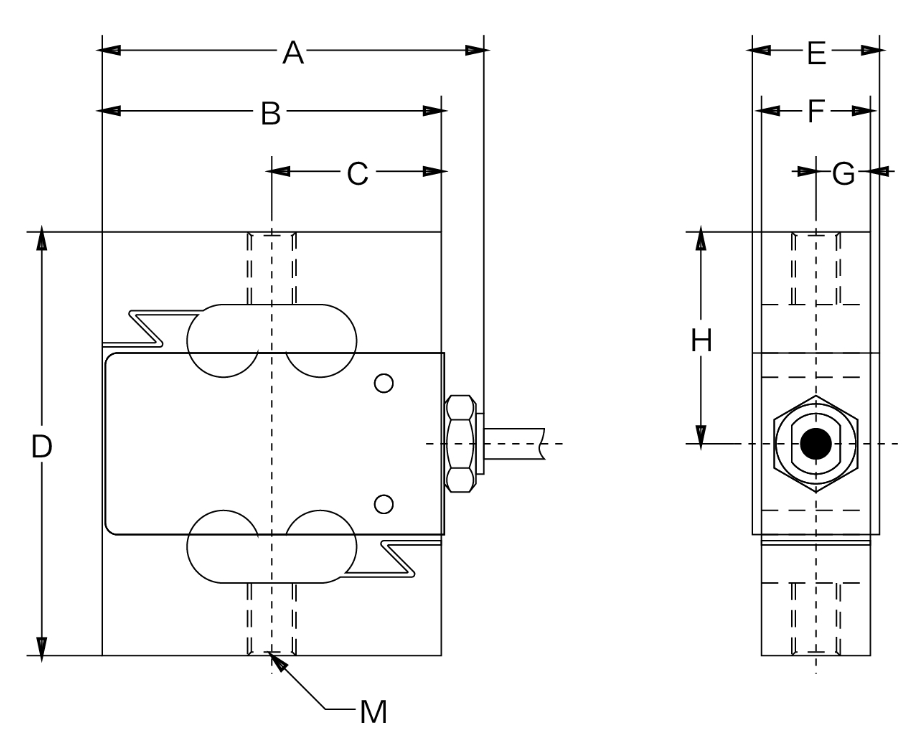

Dimensions：

Range（N）	Range（kg）		A	B	C	D	E	F	G	H	M
50-1000	5-100	mm	64	56	28	70	21	18	9	35	M8x1.25

Specification：

Specifications
Rated Output	2.0mV/V±1%	Zero Balance	±1%F.S
Comprehensive Precision	0.03%F.S	Input Impedance	410±5Ω
Linearity/ Hysteresis	±0.03%F.S	Output Impedance	350±3Ω
Repeatability	±0.03%F.S	Insulation Impedance	≥5000MΩ
Creep	±0.03%F.S/30min	Recommended Excitation Voltage	5～15V/DC
Temp. Effect On Zero	±0.02%/10℃	Compensated temp. Range	-30℃～+70℃
Temp. Effect On Output	±0.02%/10℃	Safe Overload	150%F.S
Connection	Excitation：+ Red - Black Signal： + Green - White Shield： Thick Yellow
